For the fractures of the trochanteric region,trochanteric simple, cervicotrochanteric, multifragmentary pertrochanteric, intertrochanteric, reversed or transverse fractures of the trochanteric region or with additional fracture of the medial cortex.
-
Fractures of the proximal end of the femur combined with ipsilateral shaft fractures.
-
Metastatic fracture of the proximal femur.
-
Osteotomies of the proximal femur.
-
Also for use in fixation of osteopenic bone and fixation of nonunions or malunions.
-
Periprosthetic Fractures.
-

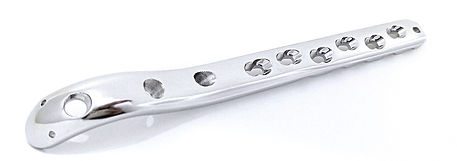

Anatomically contoured to approximate the lateral aspect of the proximal femur.
-
Plate lengths allows spanning of the entire diaphysis in segmental fracture patterns.
-
Use of locking screws provides the option of an angular stable construct independent of bone quality.
-
Plate can be tensioned to create a load-sharing construct.
-
Plates specifically designed for left or right femur to accommodate average femoral neck anteversion.
-
The three proximal screw holes are at the following angles to the plate shaft:
First proximal hole (7.3 mm): 95°
Second proximal hole (7.3 mm): 120°
Third proximal hole (5.0 mm): 135°
-
The two proximal plate holes are threaded and accept 7.3 mm cannulated screws (locking, conical fully threaded, or conical partially threaded).
-
The third locking hole is threaded to accept 5.0 mm locking screws.
Cat. No. Holes L-R Length(mm)
IM-P-L-PF-04 4 HOLES L-R 175.0
IM-P-L-PF-06 6 HOLES L-R 211.0
IM-P-L-PF-08 8 HOLES L-R 247.0
IM-P-L-PF-10 10 HOLES L-R 283.0
IM-P-L-PF-12 12 HOLES L-R 319.0
IM-P-L-PF-14 14 HOLES L-R 355.0
IM-P-L-PF-16 16 HOLES L-R 391.0
